LOW_E镀膜玻璃介绍

Low-E节能玻璃，是在玻璃表面镀上多层金属或其他化合物组成的膜系产品。该产品可见光透过率高，对远红外线有较高反射率的镀膜玻璃。金晶根据不同气候地区节能的实际需要，可为客户提供高性能的可异地钢化单银、双银、三银及相关节能复合产品。

Low-E coated glass is one of the coated glass products withvarious metal or other compound depositions on the surface.It has different transmittance to visible light and higherreflectance against far Infrared. We provide single silver,double silver Low-E coated glass and related Compoundglass products with optimized performance for customersaccording to the actual demands and requirements ofdifferent climate zones.

l  产品规格 Specification

常规尺寸 Standard Size：3300*2440、3300*4880、3300*6000

最大尺寸 Max Size：12000*3300mm

产品厚度 Thickness： 3-19mm

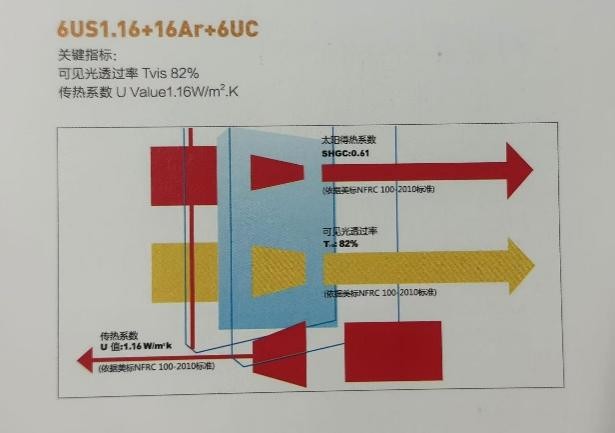

l  单银系列Low-E玻璃（Optilite S/Optisolar S系列）

 性能特点：

1、 出色的保温性能，有效降低冬季热量散失，营造温暖舒适的室内温度；

2、可见光透过率高，充足的自然采光，自然明亮的室内环境；

3、 较高的太阳得热系数与较低的传热系数，有效降低冬季采暖费用；

Characteristics:

1. More excellent thermal insulation, hence more effectively decrease heat dissipation in winter, and build a warm and cozy room temperature.

2. High visible light transmittance so that assure sufficient natural lighting and bright

indoor environment.

3. Higher SHGC and lowered U value, hence more effectively save conditioner cost in

winter.

应用区域：严寒及寒冷地区

应用建筑：住宅建筑，别墅、高层及多层住宅

推荐应用：低能耗被动式建筑

Applied area: freezing and cold areas

Applied building: residential housing, such as villa, high-rise and

multi-storey dwelling

Recommended application: low energy passive buildings, refrigerators
